LINEA ROSSA - LR5100

The LR-5100 is not only insulating and sealing, but also means comfort of life and aesthetic. It provides optimum solutions with wide profile options. You analyze our accessories and unlimited options. In addition, our wide range of color inspires you.

LR-5100 Characteristics Reflected Product's Identity

• Optimum Solutions with Wide Profile Options
• Possibility to Apply PVC Double Opening System with Standart Aluminium Double Opening System

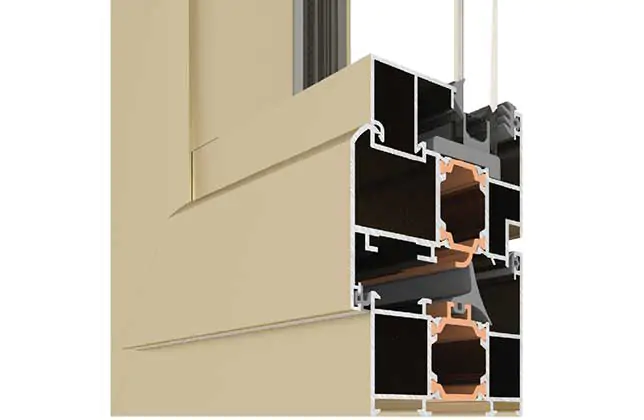

• Excellent Sealing and Sound Isolation as a Result of Joining of Radiused Thermal Insulation Barrier with Case Middle Container
• Custom Designed Adjustable Lock Provisions
• Application of Better Heat Insulation Value with Difference Combinations
• Triple Glass and Venetian Glass Applicability
• Modern and Aesthetic Appearance of the Metal, Silver, and Bronze Colored Eloxal Surfaces
• Powder Paint and Wooden Appearance Options on Specially Designed Different Concepts

Technic Specifications of the System

• Wing Width: 72 mm
• Case Width: 65 mm
• Case Wing Height (min.): 90 mm
• Glass Thickness: 16 – 42 mm arası
• Max. Wing Carrying Capacity: 120 Kg ∼ 200 kg
• Insulation Bridge: 24 mm
• Heat Insulation EN ISO 10077-2: Uf=2,3 W/m2K
