LINEA ROSSA - LR4500

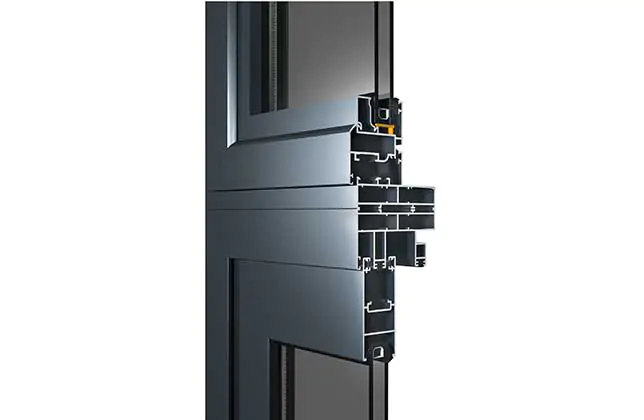

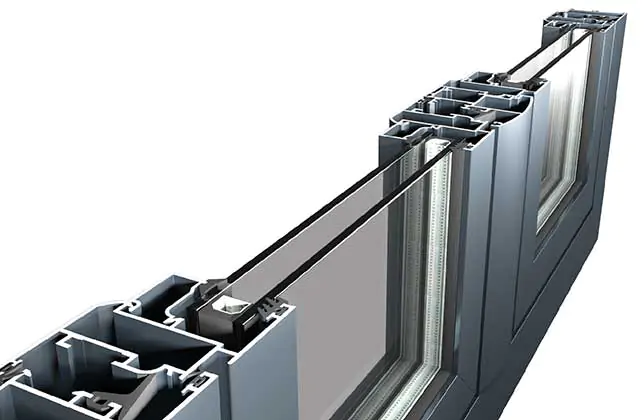

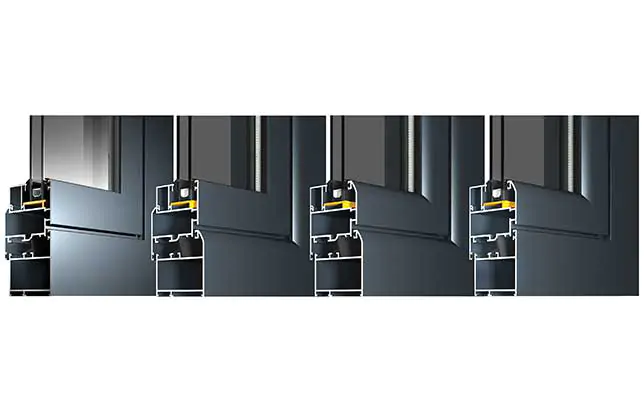

LR-4500 Non-Insulated Opening Door-Window System is a window and door system without heat insulation which all opening variations can be solved with various profile options. All the features that is required for hinged opening systems await you.

LR-4500 Uninsulated Opening Door Window System is a window and door system without heat insulation where all opening variations can be solved with various profile options. All the features required for hinged opening systems await you.

LR-4500 Characteristics Reflected Product's Identity

• Composite: AIMgSi (EN AW 6063)
• Hardness: P 22
• Profile Wall Thickness: 1,6 - 2,0 mm
• Profile Geometric Smoothness: EN DIN 12020-2 Compliant

Technic Specifications of the System

• Case Dimensions: 55/ 63,7 mm
• Wing Dimensions: 62 / 74,3 mm
• Heat Glass Application: Single or Double 3 Triple Glass Application Up to 40 mm
• Maximum Glass Weight: 130 kg for Door and Window
• Sealing: 3 Step Gasket Application
