LINEA ROSSA - LR4100

LR-4100 Characteristics Reflected Product's Identity

• Composite: AIMgSi (EN AW 6063)
• Hardness: P 22
• Profile Wall Thickness: 1,4 - 1,6 mm
• Profile Geometric Smoothness: EN DIN 12020-2 Compliant

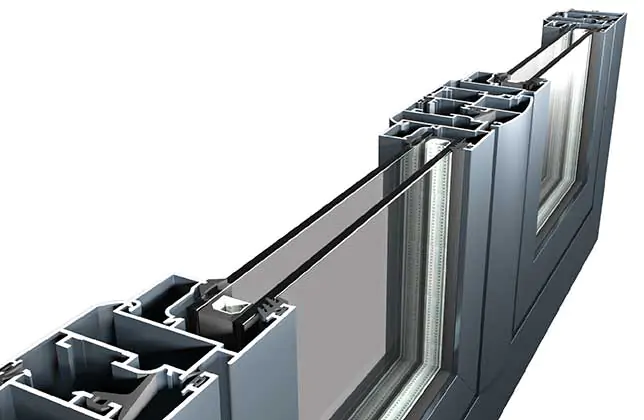

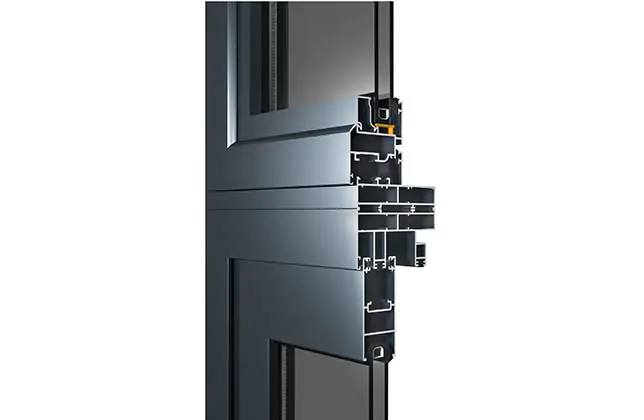

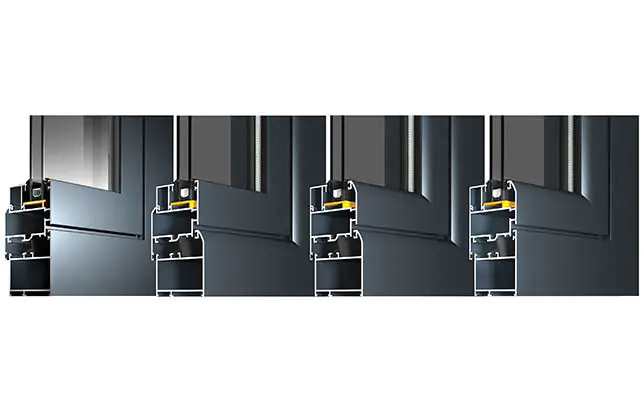

Technic Specifications of the System

• Case Dimensions: 45 / 50 mm
• Wing Dimensions: 52 / 64,1 mm
• Heat Glass Application: Single or Double Glass Application Up to 32 mm
• Maximum Glass Weight: 80 kg for Door and Window
• Sealing: 3 Step Gasket Application
