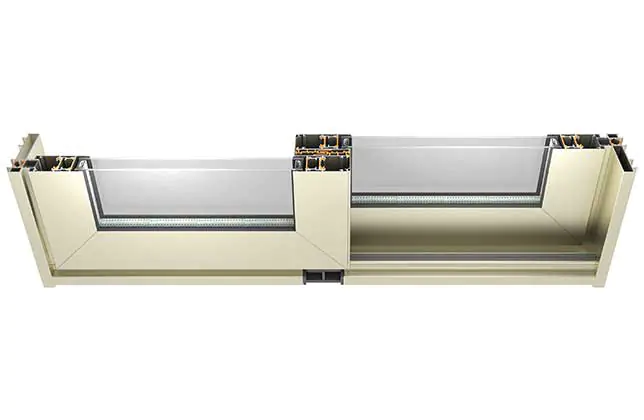

LINEA ROSSA - LR3400

We are realistic in this case that is magnificent air and water impermeability (Air Insulation: A4 Water Insulation: 1050 PA). Linea Rossa LR 3400 Sliding Series even reach the continental climete. There is a soul which wants to struggle challenging climatic conditions on the Linea Rossa Sliding System. LR 3400 waits us.

LR-3400 Characteristics Reflected Product's Identity

• HBSB and Normal Driving
• 300 kg Carrier Capacity
• 90° Cutting Case Profile, 45° Cutting Wing Profile
• Locking From Multi Point
• Excellent Air and Waterproofing (Air Insulation: A4, Water Insulation: 1050Pa)
• Excellent Water Discharge Performance and Heat Isolation Throughout the Entire Case with Trex Apparatus in the Center. (Uw:1,5 w/m² K)

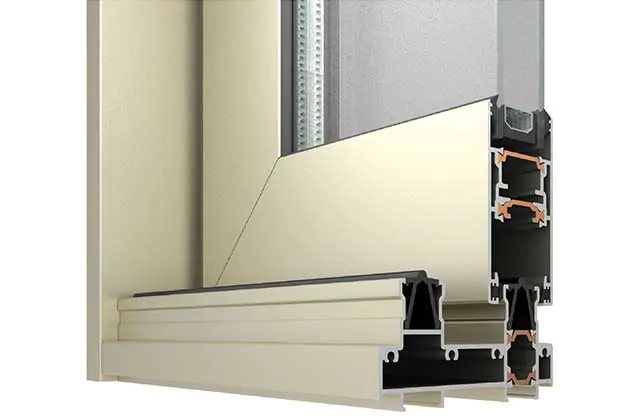

Technic Specifications of the System

• Case Width: 106 mm
• Case Height: 50,5 mm
• Wing Width: 45 mm
• Middle Planting Width: 86/106 mm
