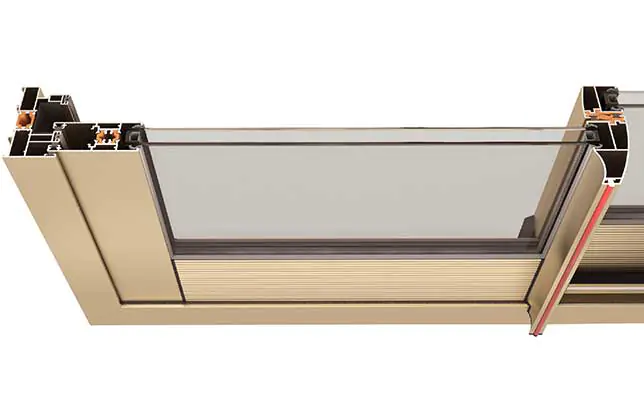

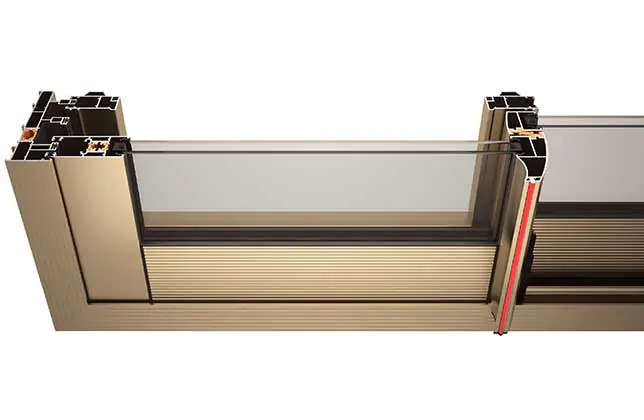

LINEA ROSSA - LR3100

LR-3100 Characteristics Reflected Product's Identity

• Better Water, Air Insulation and Energy Saving
• Ease of Production and Montage
• Minimal Architectural Solutions with %50 Reduced Center Seams
• Special Swatter Design that Solved in the System
• Special Design and Options that are Suitable for the Project
• Ease of High Strength and Comfort with Special Rollers which move on Stainless Steel Rail
• Very Point Locking System that Designed Specially and High Strength
• Centerless Seam Detail without Gaps and with Polyamide Profiles
• Modern and Aesthetic Appearance of the Metal, Silver, and Bronze Colored Eloxal Surfaces
• Powder Paint and Wooden Appearance Options on Specially Designed Different Concepts

Technic Specifications of the System

• Wing Width: 32 mm
• Wing Height: 75 mm
• Case Height: 44 mm
• Anchored Middle Wing Width: 34 – 78,5 mm
• Glass Thickness: 20 – 22 mm
• Max. Wing Carrying Capacity: 120 kg
• Insulation Bridge: 20 mm
• Heat Insulation EN ISO 10077-2: Uf=3,8 W/m2K
