LINEA ROSSA - LR2200

LR-2200 Characteristics Reflected Product's Identity

• Ease of Production and Montage
• Special Steel Rail and Roller near Zero Friction For Easy and Smooth Sliding Syste
• Rollers That are Available for Heavy Load
• Applicability of Single and Multiple Lock into Sliding Case That is Lock-in
• More Durable Collection Possibility thanks to Special Wedge
• Special Swatter Design that Solved in the System
• Special Design and Options that are Suitable for the Project
• Ease of High Strength and Comfort with Special Rollers which move on Stainless Steel Rail

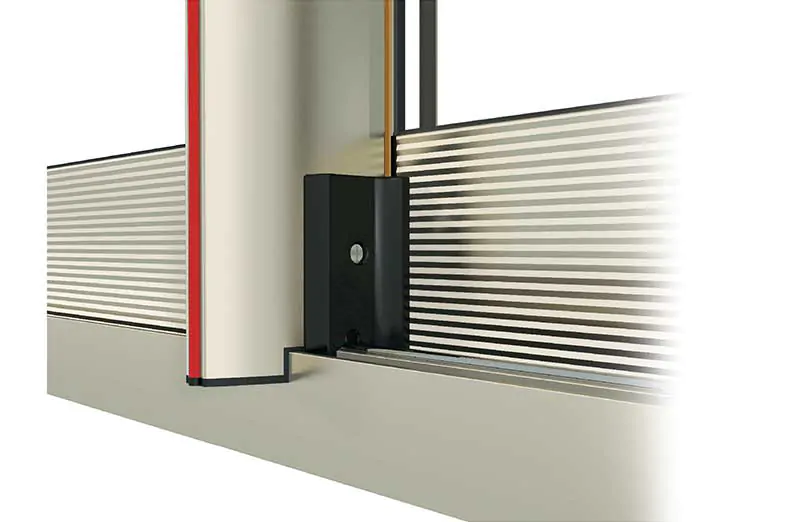

• Very Point Locking System that Designed Specially and High Strength

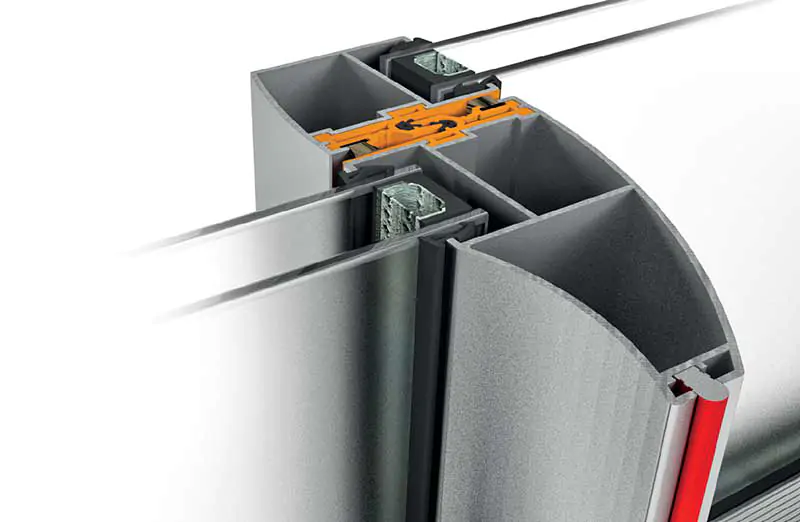

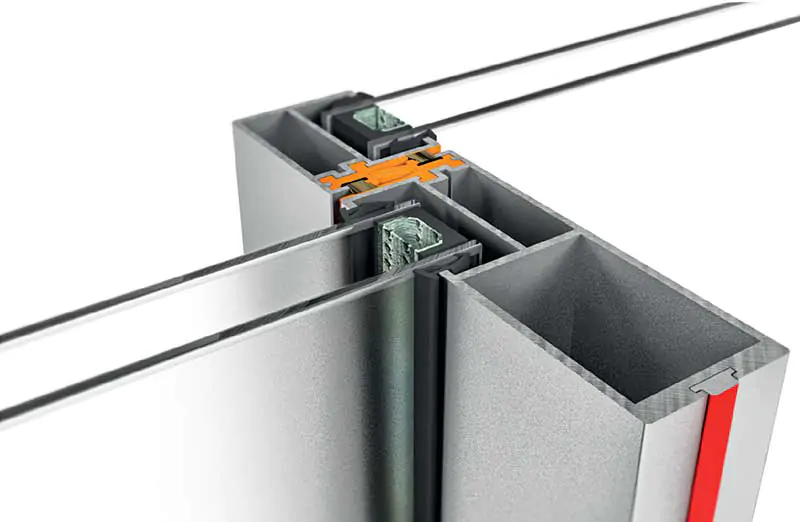

• Centerless Seam Detail without Gaps and with Polyamide Profiles
• Modern and Aesthetic Appearance of the Metal, Silver, and Bronze Colored Eloxal Surfaces
• Powder Paint and Wooden Appearance Options on Specially Designed Different Concepts

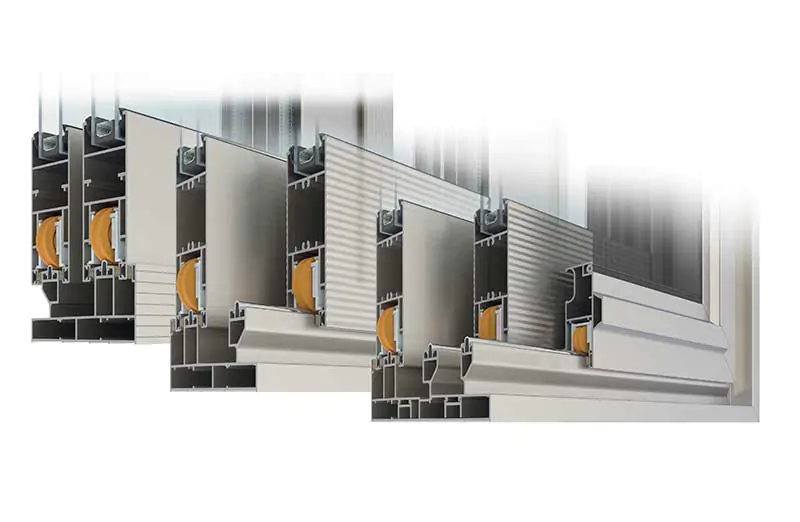

Technic Specifications of the System

• Wing Width: 38 mm
• Wing Height: 92,5 mm
• Profile Wall Thickness: 1,3 - 1,8 mm
• Glass Thickness: 20 – 26 mm
• Max. Wing Carrying Capacity: 120 kg
• Profile Geometric Smoothness: EN ISO 12020-2 Complimant
